JavaEE AngularJS Bootstrap: How to Sort with Smart-Table

logo angularjsHere is a sortable data-table. Using Twitter Bootstrap,  ng-module SmartTable for front-end. And Spring-Data, Jersey JAXRS for backend.

Demo

Start with Tomcat:

http://localhost:8080/20151103-javaee-angularjs-bootstrap-sort/

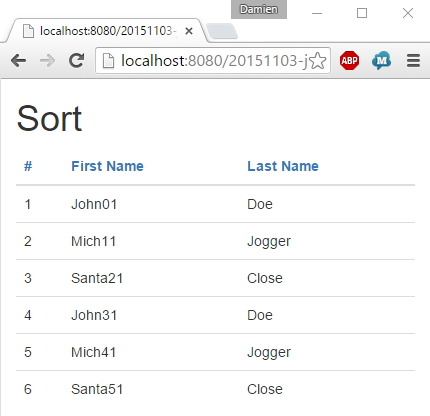

A data-table is displayed, with rows and sorter headers.

ScreenShot001

By clicking on row’s header, the row’s data order change and a new icon is displayed.

ScreenShot002

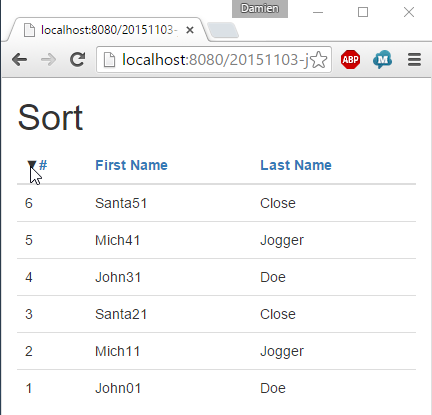

It’s possible to reverse the order.

ScreenShot003

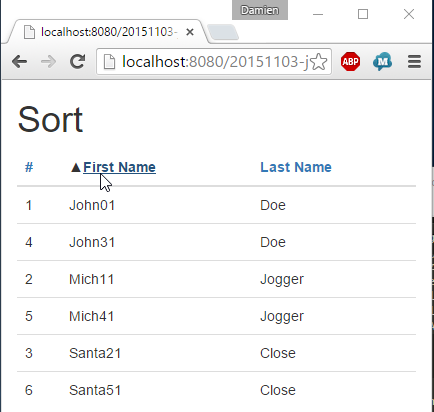

It work with both String and Nubmer type (see Java code).

ScreenShot004

Source

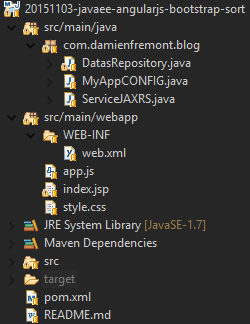

ScreenShot005

DatasRepository.java

package com.damienfremont.blog;

import static org.springframework.data.domain.Sort.Direction.ASC;

import java.io.Serializable;
import java.util.ArrayList;
import java.util.List;

import org.springframework.data.domain.Page;
import org.springframework.data.domain.PageImpl;
import org.springframework.data.domain.Pageable;
import org.springframework.data.domain.Sort;
import org.springframework.data.domain.Sort.Order;
import org.springframework.data.repository.PagingAndSortingRepository;

import com.damienfremont.blog.ServiceJAXRS.Person;
import com.google.common.base.Function;
import com.google.common.collect.Ordering;

public class DatasRepository implements PagingAndSortingRepository<Person, Serializable> {

  // MOCK
  static List<Person> datas;
  static {
    datas = new ArrayList<>();
    for (int i = 0; i < 5; i++) {
      datas.add(new Person(i + 1, "John" + i + 1, "Doe"));
      i++;
      datas.add(new Person(i + 1, "Mich" + i + 1, "Jogger"));
      i++;
      datas.add(new Person(i + 1, "Santa" + i + 1, "Close"));
    }
  }

  @Override
  public Page<Person> findAll(Pageable arg0) {
    List<Person> content = null;
    if (null != arg0.getSort()) {
      Order orderById = arg0.getSort().getOrderFor("id");
      Order orderByLastName = arg0.getSort().getOrderFor("lastName");
      Order orderByFirstName = arg0.getSort().getOrderFor("firstName");
      Order order = null;
      Function sortBy = null;
      if (orderById != null) {
        order = orderById;
        sortBy = sortById;
      } else if (orderByLastName != null) {
        order = orderByLastName;
        sortBy = sortByLastName;
      } else if (orderByFirstName != null) {
        order = orderByFirstName;
        sortBy = sortByFirstName;
      } else {
        order = new Order(ASC, "id");
        sortBy = sortById;
      }
      Ordering ordering = Ordering //
          .natural() //
          .onResultOf(sortBy);
      boolean isOrderAsc = (order.getDirection() == ASC);
      content = isOrderAsc //
          ? ordering.sortedCopy(datas) //
          : ordering.reverse().sortedCopy(datas);
    } else {
      content = new ArrayList<>(datas);
    }
    int total = datas.size();
    return new PageImpl<>(content, arg0, total);
  }

  Function<Person, Integer> sortById = new Function<Person, Integer>() {
    public Integer apply(Person foo) {
      return foo.id;
    }
  };

  Function<Person, String> sortByFirstName = new Function<Person, String>() {
    public String apply(Person foo) {
      return foo.firstName;
    }
  };

  Function<Person, String> sortByLastName = new Function<Person, String>() {
    public String apply(Person foo) {
      return foo.lastName;
    }
  };
...

MyAppCONFIG.java

package com.damienfremont.blog;

import java.util.HashSet;
import java.util.Set;
import javax.ws.rs.core.Application;

public class MyAppCONFIG extends Application {

  @Override
  public Set<Class<?>> getClasses() {
    Set<Class<?>> s = new HashSet<Class<?>>();
    s.add(ServiceJAXRS.class);
    return s;
  }
}

ServiceJAXRS.java

package com.damienfremont.blog;

import static org.springframework.data.domain.Sort.Direction.ASC;
import static org.springframework.data.domain.Sort.Direction.DESC;

import java.io.Serializable;

import javax.ws.rs.GET;
import javax.ws.rs.Path;
import javax.ws.rs.Produces;
import javax.ws.rs.QueryParam;
import javax.ws.rs.core.MediaType;

import org.springframework.data.domain.Page;
import org.springframework.data.domain.PageRequest;
import org.springframework.data.domain.Pageable;
import org.springframework.data.domain.Sort;
import org.springframework.data.domain.Sort.Direction;

@Path("/person")
public class ServiceJAXRS {

  DatasRepository datas = new DatasRepository();

  @Path("/page")
  @GET
  @Produces(MediaType.APPLICATION_JSON)
  public Page<Person> getAll( //
      @QueryParam("sort") String sortPredicate, //
      @QueryParam("reverse") Boolean sortReverse //
  ) {
    Direction order = sortReverse ? DESC : ASC;
    Sort sort = new Sort(order, sortPredicate);
    Pageable pageRequest = new PageRequest(0, 100, sort);
    Page<Person> page = datas.findAll(pageRequest);
    return page;
  }

  // MODEL
  static class Person implements Serializable {
    private static final long serialVersionUID = 9167120287441116359L;
    public Integer id;
    public String firstName;
    public String lastName;

    public Person() { }

    public Person(Integer id, String firstName, String lastName) {
      super();
      this.id = id;
      this.firstName = firstName;
      this.lastName = lastName;
    }
  }

}

web.xml

<web-app xmlns="http://xmlns.jcp.org/xml/ns/javaee" xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
	xsi:schemaLocation="http://xmlns.jcp.org/xml/ns/javaee
     http://xmlns.jcp.org/xml/ns/javaee/web-app_3_1.xsd"
	version="3.1">

	<servlet>
		<servlet-name>REST</servlet-name>
		<servlet-class>org.glassfish.jersey.servlet.ServletContainer</servlet-class>
		<init-param>
			<param-name>javax.ws.rs.Application</param-name>
			<param-value>com.damienfremont.blog.MyAppCONFIG</param-value>
		</init-param>
		<init-param>
			<param-name>jersey.config.server.provider.classnames</param-name>
			<param-value>org.glassfish.jersey.media.multipart.MultiPartFeature</param-value>
		</init-param>
		<load-on-startup>1</load-on-startup>
	</servlet>
	<servlet-mapping>
		<servlet-name>REST</servlet-name>
		<url-pattern>/api/*</url-pattern>
	</servlet-mapping>

	<servlet>
		<servlet-name>WEBJARS</servlet-name>
		<servlet-class>org.webjars.servlet.WebjarsServlet</servlet-class>
		<init-param>
			<param-name>disableCache</param-name>
			<param-value>true</param-value>
		</init-param>
		<load-on-startup>2</load-on-startup>
	</servlet>
	<servlet-mapping>
		<servlet-name>WEBJARS</servlet-name>
		<url-pattern>/webjars/*</url-pattern>
	</servlet-mapping>

</web-app>

app.js

'use strict';

var app = angular.module(
  'app',
  [ 'ngResource',
    'smart-table'
    ]);

app.factory('Service', function($resource) {
    return $resource('api/person/page');
});

app.controller('TableCtrl', function ($scope, Service) {

  $scope.callServer = function(tableState) {
	var sort = tableState.sort;
	var predicate = sort.predicate || 'id';
	var reverse = sort.reverse || false;
	Service.get({
        sort : predicate,
        reverse : reverse
	  },
      function(pageable) {
        $scope.items = pageable.content;
    });
  };
});

index.jsp

<!DOCTYPE html>
<html
  ng-app="app">
<head>
<!-- LIBS CSS -->
<link rel="stylesheet" href="webjars/bootstrap/${bootstrap.version}/css/bootstrap.css">
<link rel="stylesheet" href="style.css">
<!-- LIBS JS -->
<script src="webjars/angularjs/${angularjs.version}/angular.js"></script>
<script src="webjars/angularjs/${angularjs.version}/angular-resource.js"></script>
<script src="webjars/angular-smart-table/${angular-smart-table.version}/dist/smart-table.js"></script>
<!-- YOUR JS -->
<script src="app.js"></script>
</head>
<body>
<div class="container">

<h1>Sort</h1>
<form
  ng-controller="TableCtrl">
<table class="table"
  st-table="items"
  st-pipe="callServer">
<thead>

<!-- HEADERS -->
<tr>
  <th st-sort="id">
    <a href="#">#</a></th>
  <th st-sort="firstName">
    <a href="#">First Name</a></th>
  <th st-sort="lastName">
    <a href="#">Last Name</a></th>
</tr>
</thead>

<!-- CONTENT -->
<tbody>
<tr ng-repeat="i in items">
  <td>{{i.id}}</td>
  <td>{{i.firstName}}</td>
  <td>{{i.lastName}}</td>
</tr>
</tbody>

</table>
</form>
</div>
</body>
</html>

style.css

.st-sort-ascent:before {
  content: '\25B2';
}
.st-sort-descent:before {
  content: '\25BC';
}

Project

https://github.com/DamienFremont/blog/tree/master/20151103-javaee-angularjs-bootstrap-sort

References

http://projects.spring.io/spring-data/

http://ngmodules.org/modules/Smart-Table

http://lorenzofox3.github.io/smart-table-website/
